Q CHERRY BOMB 8.6 BLACKOUT

M18-1.5

8.6 BLK MUZZLE DEVICE

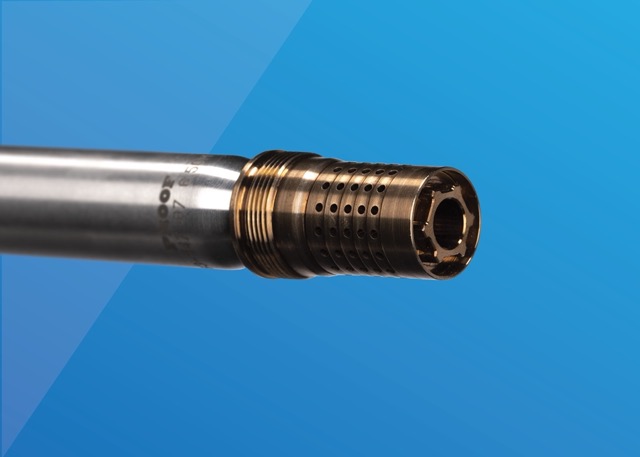

The Cherry Bomb by Q is a Quickie Fast-Attach muzzle brake.  It features our taper mount shoulder to align with our barrels and silencers, uses a 1/2 inch socket (standard Cherry Bomb) and 9/16 inch (8.6 BLK) on the front for easy install and removal, and features 360° circumferential ports to alleviate the need for timing and shims. Backwards compatible with standard 90 degree shouldered barrels.

SPECS

• WEIGHT:  2.0 oz. (Standard) and 3.2 oz. (8.6 BLK)
• OVERALL LENGTH: 1.64 inches (Standard) and 2.27 inches (8.6 BLK)
• MATERIAL: 17-4 Stainless Steel
• LENGTH ADDED TO BARREL: 0.8 inches
• THREADS:
  • 5/8-24 (7.62mm BORE)
  • 1/2-28 (7.62mm BORE)
  • 1/2-28(9mm BORE)
  • 9/16-24 (7.62 BORE)
  • .578-28 (45 cal BORE)
  • M13.5-1 LH (9mm BORE)
  • M18-1.5 (8.6 BLK BORE)

DO NOT shoot 9mm through a 7.62 silencer!

Note: The 9mm Cherry Bomb™ does not have a taper on the inner threads of the brake.

RECOMMENDED TOOLS

We have seen a wide range of outside diameters for 1/2 inch sockets.  1/4 inch drive sockets are generally the best for Cherry Bombs, though we have 1/2 inch drive sockets that work as well.

Here is a confirmed compatible socket for the Standard Cherry Bomb.

Paramount 1/2", 3/8" Drive

Here is a confirmed compatible socket for the Cherry Bomb XL.

Husky 3/8 in. Drive 9/16 in.

See the last image for installation instructions

NOTE: Rocksett not include. Rocksett can be purchased at the link below.

FREQUENTLY ASKED QUESTIONS (FAQ)

Can I use the Cherry Bomb™ on my 90° shouldered barrel?

Yes.

Can this be pinned and welded to my 14.5" barrel to make it 16"?

The Cherry Bomb™ is too short and NOTrecommended for pinning and welding to a barrel.
