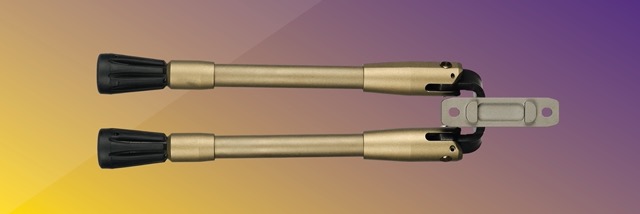

This is the Q-SERT model which direct mounts to Q Fix and Mini Fix handguards. We have the MLOK version available here.

Overall Specs:

• WEIGHT: 8.6 oz
• LENGTH (NOT DEPLOYED): 9.75 in
• HEIGHT (LEGS NOT EXTENDED): 7 1/16 in
• WIDTH (SPAN OF FEET; LEGS NOT EXTENDED): 8.125 in
• HEIGHT(EXTENDED LEGS): 9.5 in
• WIDTH (EXTENED LEGS): 10 13/16 in
• LENGTH (EXTENDED LEGS): 12 7/16 in

Specs:

• PELVIS: 304 STAINLESS NITRIDE
• 1/2IN TILT NUT: 17-4 STAINLESS HEAT TREAT
• T25 JAM SCREW: 18-8 STAINLESS HEAT TREAT (COLOR)
• TILT PIN: 17-4 STAINLESS STEEL HEAT TREAT
• PIVOT PIN: 17-4 STAINLESS STEEL HEAT TREAT
• FOOT: BLACK TPV NONE
• SPRING: 17-7 STAINLESS NONE
• ALL ELSE: 7075 ALUMINUM CLEAR ANODIZE

Features:

• DEPLOYED LEG ANGLE: 30 DEGREES (EACH); 60 TOTAL
• TILT ANGLE: 15 DEGREES EITHER SIDE

ACC-KICKSTAND-BIPOD - 850035705285
